Stainless Steel Mixing Tank for Food, Beverage, Cosmetic & Chemical Processing
Zhongyilong provides customized stainless steel mixing tanks for liquid mixing, blending, heating, emulsification and homogenization processes. Tank structure, capacity, agitator and heating system can be configured according to product characteristics and production requirements.
Stainless Steel Mixing Tank Solution
The mixing tank is designed for industrial liquid preparation and blending. It can be used as a single processing vessel or integrated into a complete production line with feeding, heating, homogenizing, storage and filling systems.
Depending on the material and process, the equipment can be supplied with single-layer, double-layer jacketed or three-layer insulated construction. Agitators can also be selected according to viscosity, solubility and mixing requirements.
Key Features of the Mixing Tank
Mixing speed can be adjusted according to different processing requirements, helping operators optimize blending performance for different materials.
A suitable homogenizer can be integrated when fine dispersion, emulsification or high-shear processing is required.
Vacuum material suction and vacuum defoaming can be incorporated for applications where reduced air incorporation is required.
Product-contact surfaces can use sanitary stainless steel construction with mirror polishing for easier cleaning and maintenance.
Mixing Tank Configurations

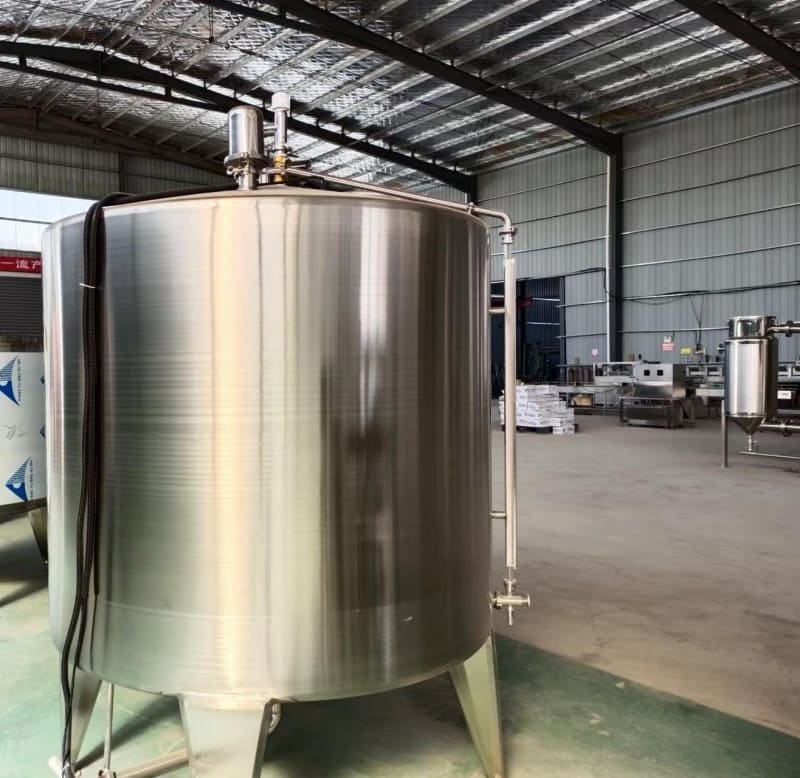

Single Layer Tank
Suitable for standard mixing and blending applications where external heating or insulation is not required.

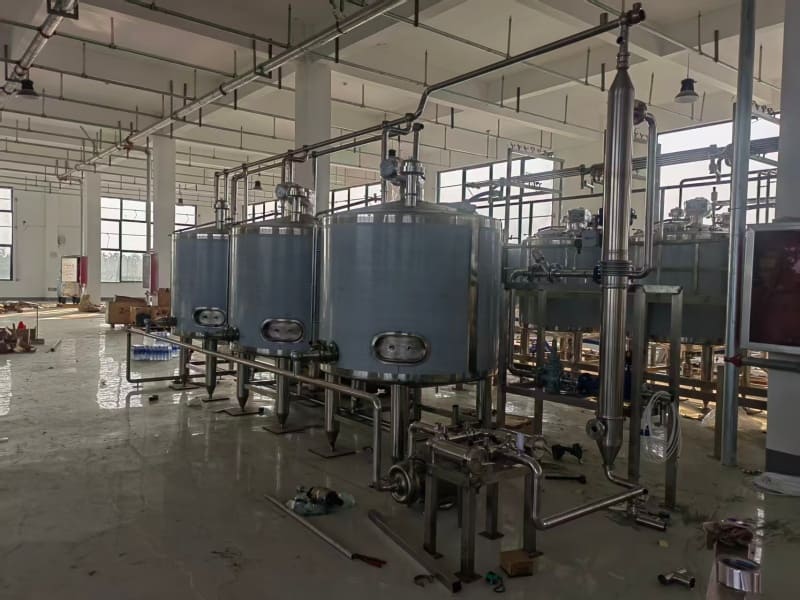

Double Layer Tank
Inner tank and jacket structure supports electric or steam heating and controlled processing temperatures.
Mixing Tank Technical Specifications
| Parameter | Specification |
|---|---|
| Material | SS304 or SS316L |
| Volume | 100 L – 30,000 L, customized |
| Tank Type | Vertical, horizontal or mobile |
| Structure | Single layer, double layer jacketed or three layer insulated |
| Heating | Electric heating or steam heating |
| Interior Finish | Mirror polished, Ra < 0.4 μm |
| Agitator | Impeller, anchor, turbine, high shear, magnetic mixer or scraper mixer |
| Motor Power | 0.55 – 55 kW |
| Voltage | 110 V – 480 V |
| Top Head | Dish top, open lid top or flat top |
| Bottom | Dish bottom, conical bottom or flat bottom |
Mixing Tank Construction Details

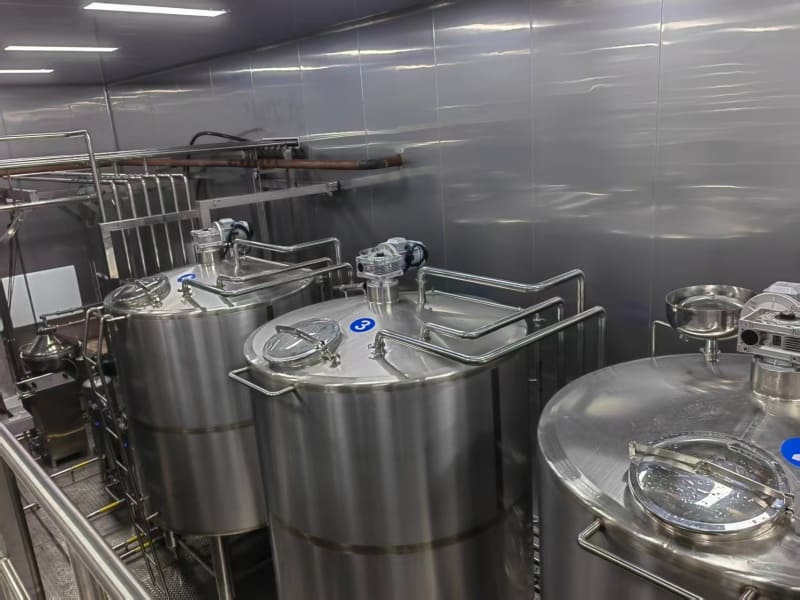

Upper Cover
The tank cover can be equipped with a feed inlet, inspection opening and visual window according to the process requirements.
Stirring Paddle
Stainless steel stirring paddles are designed for reliable operation and can be selected according to material viscosity and mixing behavior.
Seamless Welding
Sanitary welding and smooth internal surfaces help reduce material accumulation and simplify cleaning.
Stainless Steel Construction
High-quality stainless steel provides corrosion resistance, durability and convenient cleaning for industrial processing.
Mixing Tank Applications
The mixing system can be configured for a wide range of liquid products and can be integrated into food, beverage, personal care and chemical production lines.
Customized Mixing System for Your Production Line
Zhongyilong can customize mixing equipment according to product formulation, viscosity, production capacity, heating requirements and downstream processing.
Request a Customized Mixing Tank Solution
Tell us your product type, required tank capacity, viscosity, heating method and production target. Our engineers can recommend a suitable mixing tank configuration for your project.
