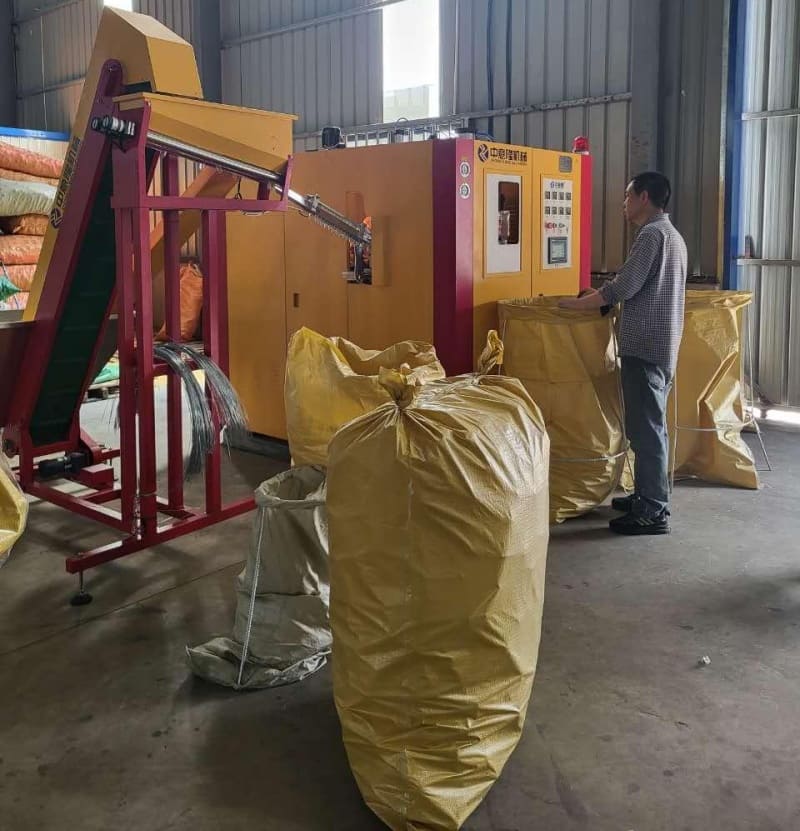

ZYLX4 Automatic PET Bottle Blow Molding Machine
ZYLX4 is an automatic PET bottle blow molding machine designed for PET bottle production in bottled water and beverage manufacturing. The supplied specifications list 4 cavities and a production capacity of 5,000–6,000 bottles per hour.
PET Bottle Production Equipment
The ZYLX4 combines automatic preform loading, infrared heating and servo-controlled high-speed blowing.
The machine supports bottle production up to 2,000 ml, with a maximum bottle height of 328 mm and maximum bottle diameter of 105 mm.
ZYLX4 Technical Data
Main specifications based on the supplied product data.
| Parameter | Specification |
|---|---|
| Model | ZYLX4 |
| Number of Cavities | 4 pcs |
| Production Capacity | 5,000–6,000 bottles/hour |
| Maximum Bottle Volume | 2,000 ml |
| Maximum Bottle Height | 328 mm |
| Maximum Bottle Diameter | 105 mm |
| Maximum Preform Length | 150 mm |
| Preform Mouth Inner Diameter | 20–25 mm |
| Total Installed Power | 51 kW |
| Heating Furnace Power | 46 kW |
| Actual Heating Power Consumption | 32 kW |
| Voltage / Frequency | 380 V / 50 Hz |
| High-Pressure Air | 30 bar |
| Air Flow | 6 m³/min |
| Main Machine Dimensions | 3400 × 1800 × 2300 mm |
| Machine Weight | 3500 kg |
Key Features

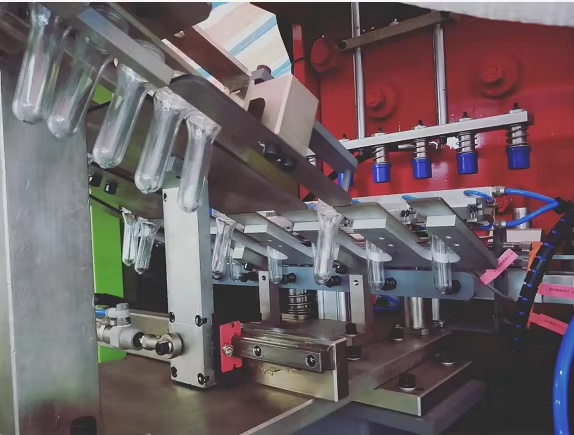

Automatic Preform Loader
Automatic preform feeding supports stable material transportation and reduces manual feeding work.

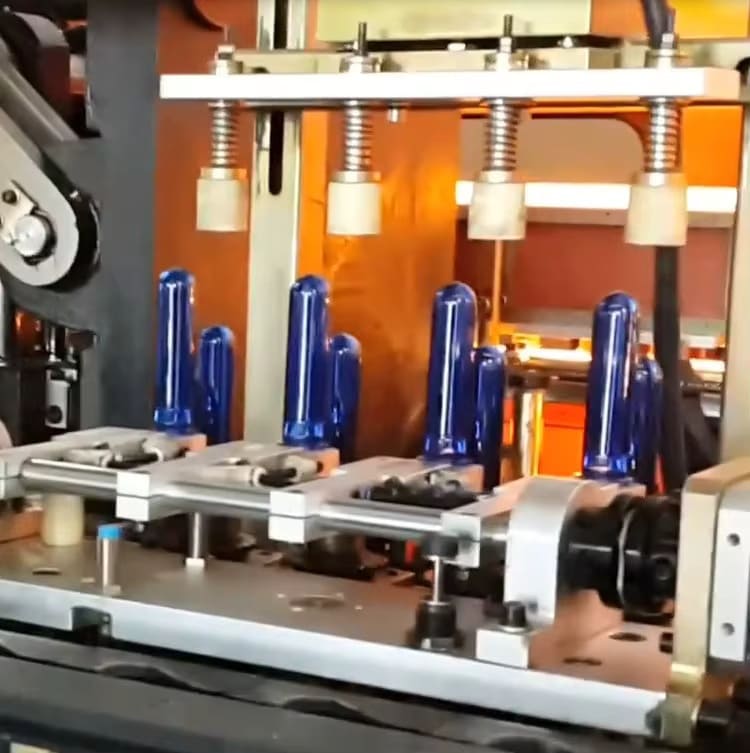

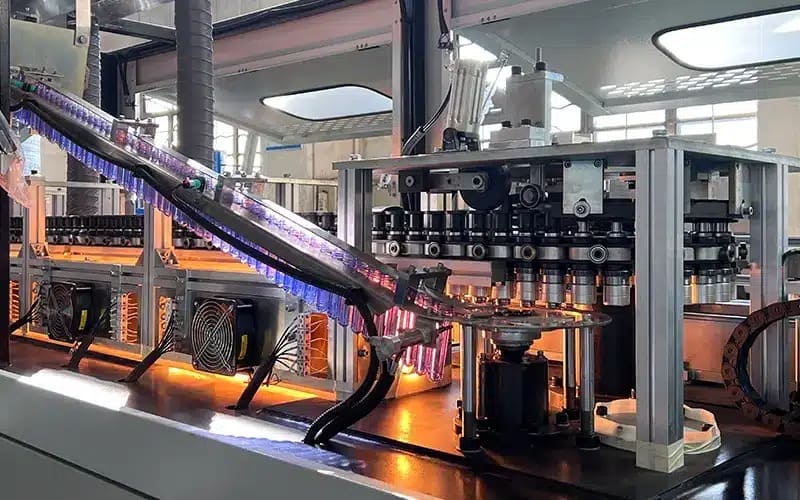

Infrared Heating
Infrared heating and preform rotation help achieve more uniform heating before bottle blowing.
Servo High-Speed Blowing
Servo drive technology integrates mold movements and supports efficient PET bottle forming.
ZYLX4 PET Bottle Blow Molding Process
Watch the PET preform heating and bottle blowing process.

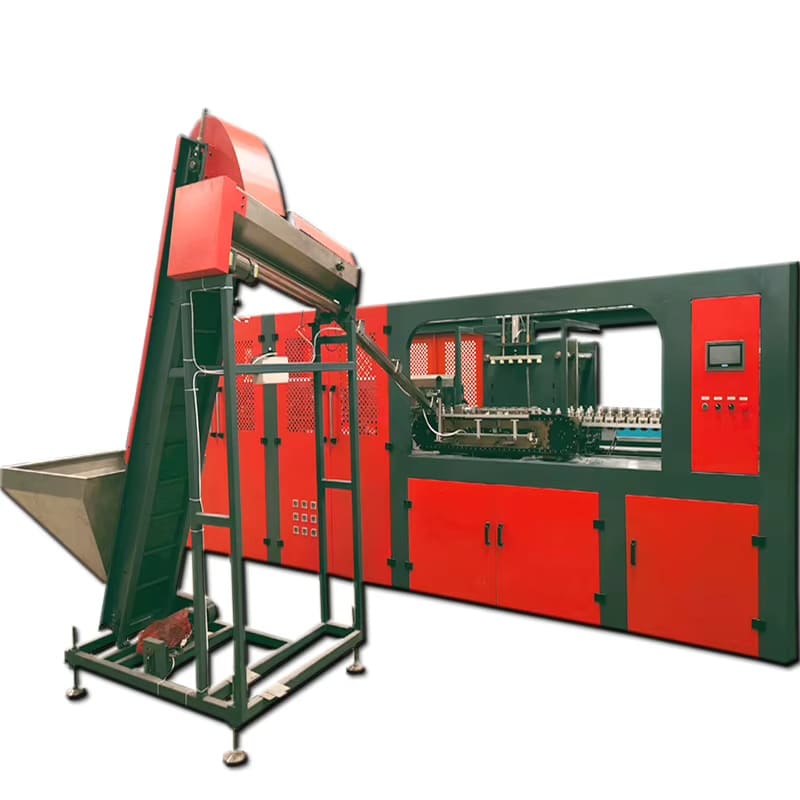

PET Bottle Blow Molding for Water & Beverage Lines
ZYLX4 can be used as part of PET bottle manufacturing systems for bottled water and beverage production. Its automatic preform loading, infrared heating and servo-controlled blowing system are designed for continuous bottle production.
For beverage manufacturers planning a PET bottle production line, the machine can be configured according to bottle volume, bottle dimensions, production capacity and preform specifications.
