Tomato Paste Production Line
Complete tomato processing solutions for tomato puree, tomato paste, tomato sauce, tomato ketchup and tomato juice. Zhongyilong integrates washing, sorting, crushing, pulping, concentration, sterilization and filling equipment according to your product, capacity and packaging format.
Get Tomato Processing Solutions

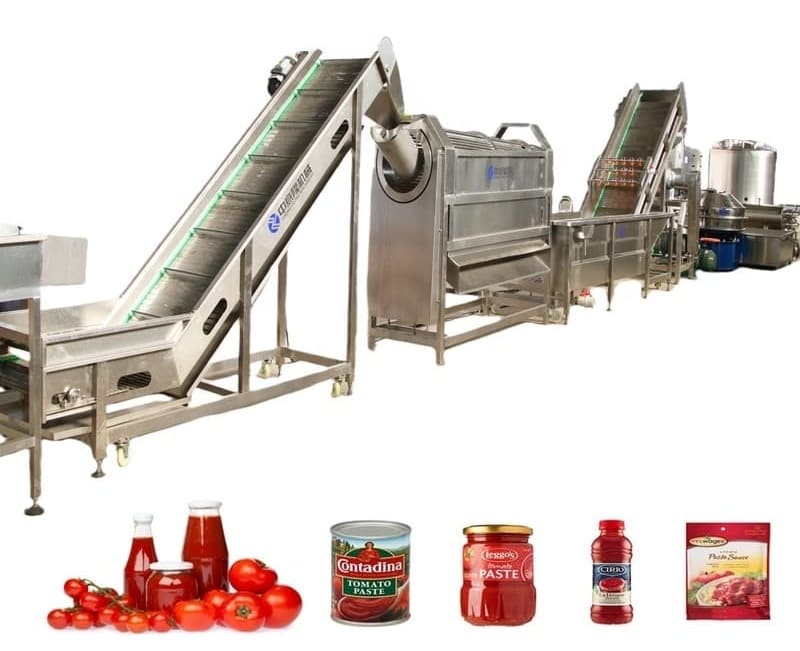

Complete Tomato Processing Solution
The tomato paste production line includes tomato washing machines, sorting machines, crushers, pulping machines, evaporators, mixing tanks and sterilization equipment.
Depending on the final packaging format, the line can be equipped with aseptic filling, bottle filling or can filling systems.
- Tomato washing and cleaning
- Sorting and raw material preparation
- Crushing and pulping
- Vacuum concentration
- Paste sterilization
- Aseptic or conventional filling
Tomato Products the Production Line Can Make
The processing system can be configured for different tomato products and final packaging requirements.
Designed Around Your Tomato Product
Different tomato products require different processing conditions. Tomato puree, paste, ketchup, sauce and juice can require different levels of pulping, concentration, mixing, heating and filling.
Zhongyilong can configure the processing line according to raw material condition, product characteristics, target capacity and packaging format.

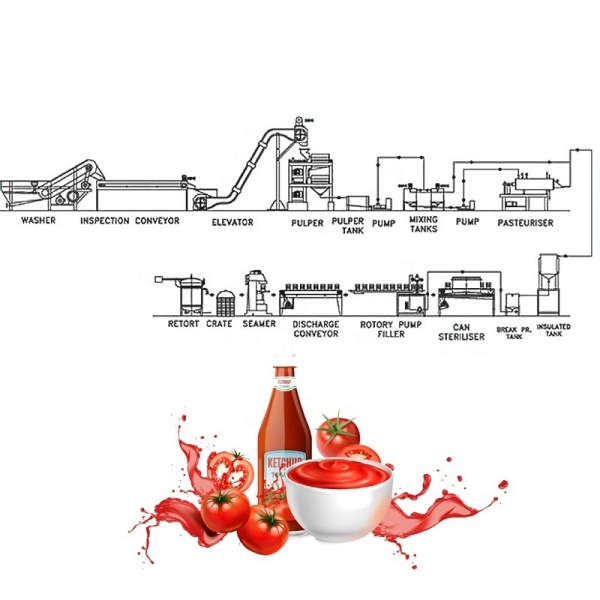

Tomato Paste Production Process
A typical tomato processing flow starts with fresh mature tomatoes and continues through cleaning, preparation, pulping, concentration, sterilization and filling.
Fresh Tomatoes
Fresh and mature tomatoes are prepared for processing.
Washing
Tomatoes are cleaned before further processing.
Sorting
Raw tomatoes are inspected and sorted.
Crushing
Tomatoes are crushed for downstream pulping.
Pulping
Pulping separates tomato pulp from skin and seeds.
Vacuum Concentration
Vacuum concentration increases product concentration.
Sterilization
Suitable sterilization equipment processes the tomato product.
Filling
Filling equipment is selected for the final package.
Tomato Paste Production Line Video
See tomato processing and packaging equipment in operation.
Reliable Equipment for Tomato Processing
The complete line can combine cleaning, preparation, pulping, concentration, sterilization and filling equipment according to the required tomato product and processing capacity.

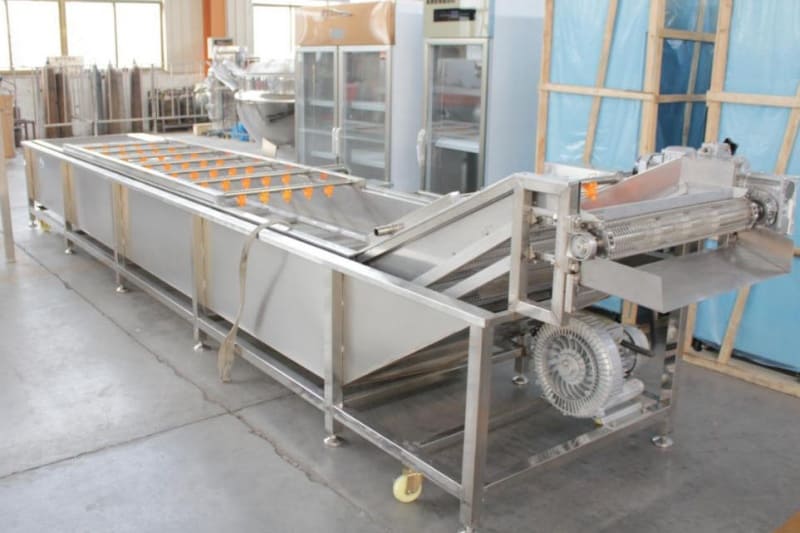

Wool Roller / Bubble Cleaner
The wool roller cleaner is suitable for tomatoes with more impurities and mud. Bubble cleaning is suitable for relatively clean tomatoes.

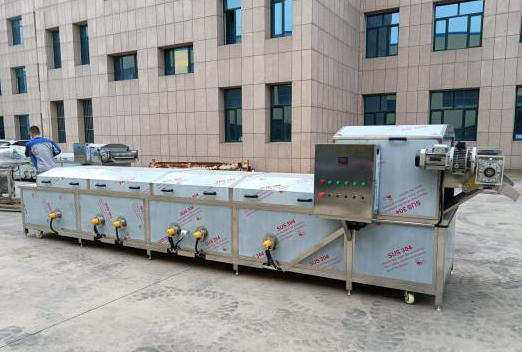

Blanching Line
Blanching can improve juice yield and help the peel fall off more easily. It is generally suitable for small-output processing.

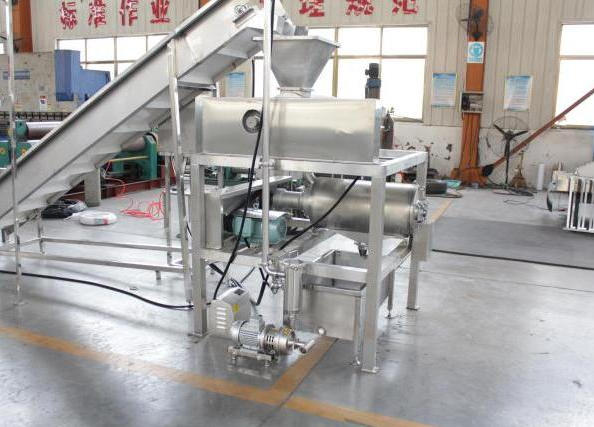

Double Beater / Pulping Machine
The double beater refines tomato material and separates pulp from skin and seeds through the beating and screening process.

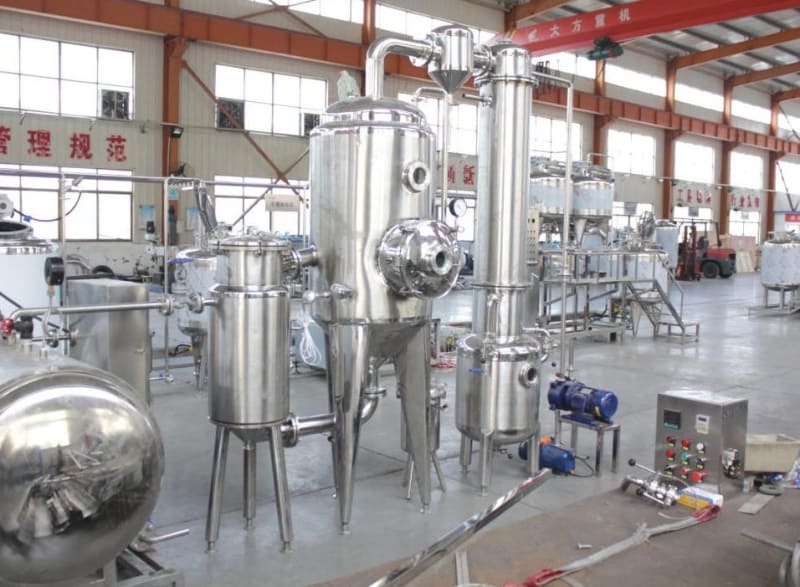

Vacuum Concentrator
The vacuum concentrator includes a heater, concentrator, vapor-liquid separator, condenser and liquid receiving barrel.

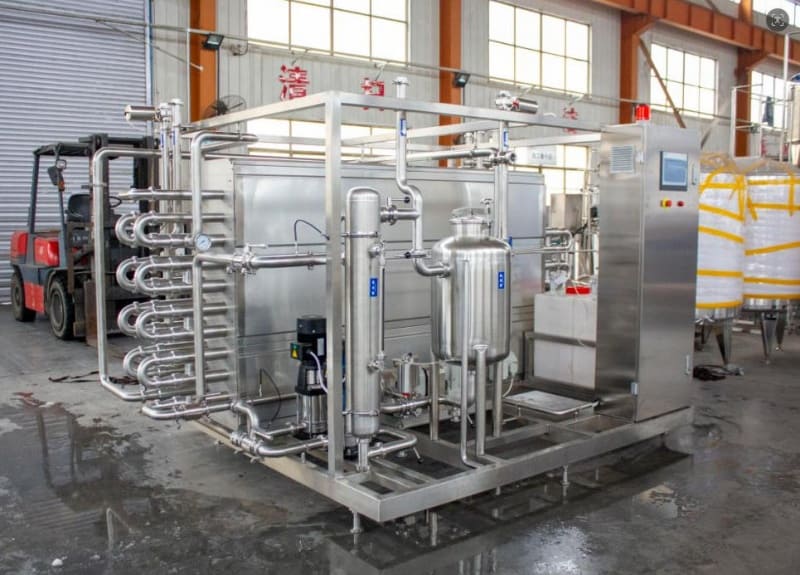

Tubular UHT Sterilizer
Suitable for juice, liquid food, fruit pulp and higher-viscosity products containing fibers or particles.

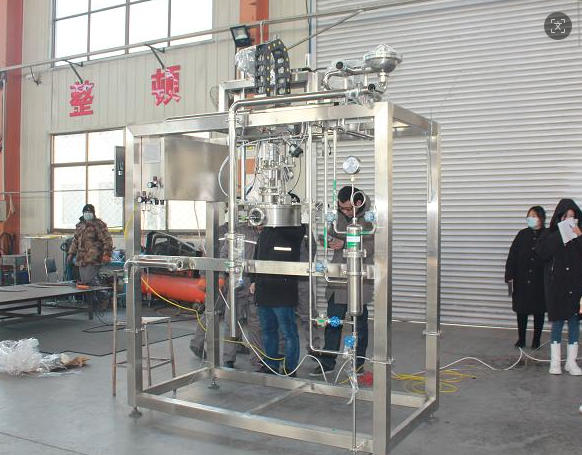

Aseptic Filling Machine
Single-head or double-head configurations are available. Double-head filling supports continuous production and can improve efficiency.
Tomato Sauce & Ketchup Processing
Additional equipment can be integrated for formulated tomato products.
Mixing Tank
The mixing tank can use single-layer, double-layer insulated or three-layer heated construction according to processing temperature. Agitator speed can be selected according to material solubility and viscosity.
High-Temperature Sterilization Retort
Hot-water circulation, steam and spray sterilization methods can be selected. Spray sterilization provides uniform heating and rapid heating and cooling, and is suitable for flexible packaged foods.
Tomato Product Filling Solutions
The filling system is selected according to product characteristics, container type and final packaging format.
Turnkey Tomato Processing Project Supplier
Henan Zhongyilong Machinery Equipment Co., Ltd. provides machinery and turnkey production solutions for food processing and packaging. For tomato projects, the system can be configured according to raw material, tomato product, processing requirements and final packaging.
The engineering approach covers process equipment selection, production line configuration, filling integration and project support, helping customers develop a complete tomato processing solution.
Discuss Your ProjectTomato Paste Production Line FAQ
What products can a tomato processing line produce?
The line can be configured to produce tomato puree, tomato paste, tomato ketchup, tomato sauce and tomato juice.
What is the basic tomato paste production process?
The basic process is fresh mature tomato, washing, sorting, crushing, pulping, vacuum concentration, sterilization and filling.
Which tomato cleaning machine should be selected?
Wool roller cleaning is suitable for tomatoes with more mud and impurities, while bubble cleaning is suitable for relatively clean tomatoes.
Is the blanching line suitable for large production?
The supplied technical information indicates that blanching is mainly suitable for small-output processing. For large production, crushing combined with a tubular preheater can be used.
Can the filling machine be customized?
Yes. Aseptic filling, bottle filling or can filling can be selected according to the final product and packaging format.
Can tomato ketchup and tomato sauce be produced?
Yes. Mixing equipment can be integrated according to the formulation, viscosity and processing requirements.
Plan Your Tomato Paste Production Line
Send us your tomato product, processing capacity, raw material condition and final packaging format. Our engineering team can develop a suitable tomato processing and filling solution for your project.
Get Your Tomato Processing Solution
