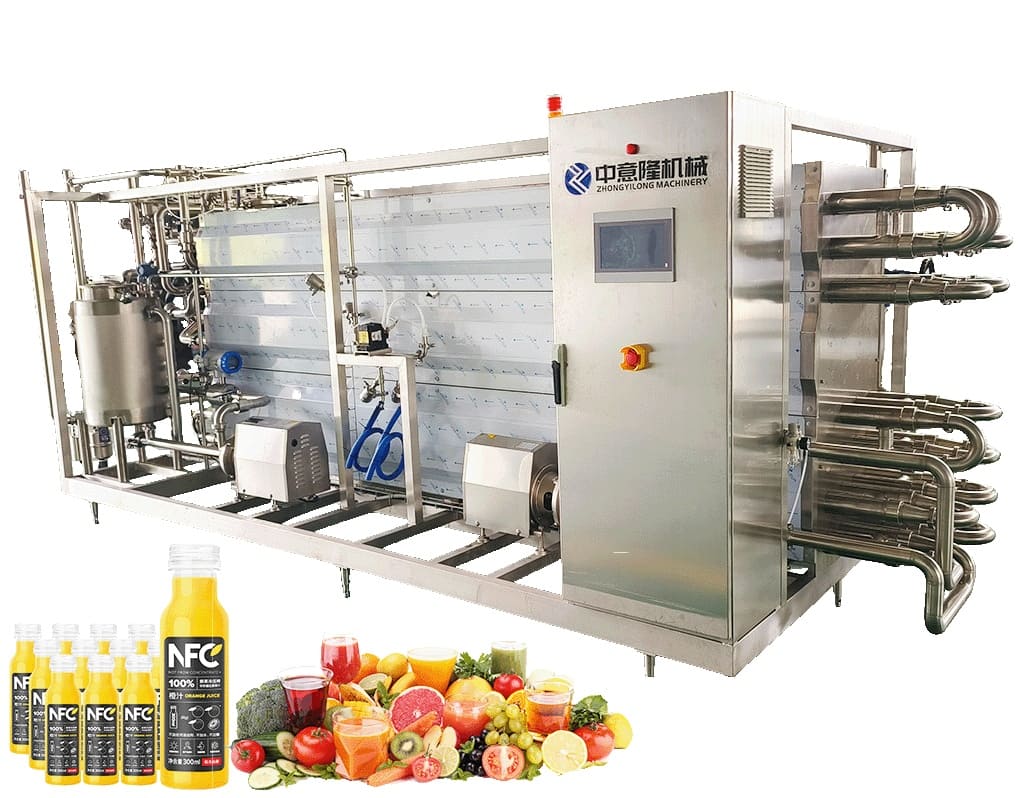

Tubular Sterilizer for Juice Processing
The tubular sterilizer is a continuous thermal processing system designed for fruit juice, vegetable juice, tea beverages and other liquid food products. It provides controlled high-temperature sterilization while supporting consistent product quality and hygienic production.
Request a Sterilization SolutionContinuous Tubular Sterilization System
The tubular sterilizer is commonly installed in the pre-treatment or thermal processing section of fruit and vegetable juice production lines. The system uses tubular heat exchangers to rapidly heat the product to the required sterilization temperature, hold it for a controlled period, and then cool it down.
Its tubular heat exchange configuration allows the system to handle different liquid characteristics, including clear juice, pulp-containing juice, puree and viscous liquid products.
Key Features of the Tubular Sterilizer
Designed for continuous beverage and liquid food processing, the system combines thermal efficiency, automation and hygienic construction.
High Sterilization Efficiency
UHT or HTST processing can be configured according to the product and required thermal treatment conditions for effective microbial inactivation.
Energy Saving Design
Multi-stage heat recovery can reduce thermal energy consumption by recovering heat between incoming and processed product streams.
Wide Product Range
Suitable for clear juice, pulp-containing juice, puree and other low- to high-viscosity liquid food products.
PLC & HMI Control
The automatic control system supports real-time monitoring, temperature control and operation management.
Food Grade Construction
SUS304 or SUS316 stainless steel can be selected according to product characteristics and project requirements.
CIP Cleaning Support
The system can be integrated with Clean-in-Place systems for efficient cleaning and hygienic production.
How Does a Tubular Sterilizer Work?
The product passes continuously through tubular heat exchangers where controlled heating, holding and cooling take place.
Product Inlet
Juice or liquid food enters the thermal processing system.
Rapid Heating
The product is heated through tubular heat exchange sections.
Holding
The product remains at the required temperature for a controlled time.
Rapid Cooling
The processed product is cooled before entering the next production stage.
Tubular Sterilizer Technical Parameters
The following values are example or typical ranges. Final parameters should be confirmed according to product, process requirements and project capacity.
Tubular Sterilizer Applications
Tubular thermal sterilization can be integrated into different beverage and liquid food production systems.
Fruit Juice
Continuous sterilization for fruit juice processing lines.
Vegetable Juice
Thermal treatment for vegetable-based liquid beverages.
Tea & Herbal Drinks
Suitable for continuous thermal processing of tea beverages.
Dairy Alternatives
Can be configured for suitable plant-based liquid products.
Choose the Right Tubular Sterilization System
Tubular sterilizer configuration should not be selected only according to nominal capacity. Product viscosity, pulp or fiber content, required sterilization conditions, heat source, packaging method and cleaning requirements can all affect the final equipment configuration.
For juice processing plants, the sterilizer can be integrated with homogenization, blending, storage, filling and CIP systems to create a complete continuous beverage processing line.
Turnkey Juice Processing Engineering Support
Henan Zhongyilong Machinery Equipment Co., Ltd. provides beverage processing machinery and turnkey engineering solutions for juice, beverage and liquid food applications.
For tubular sterilization projects, the equipment can be configured according to the customer’s product characteristics, processing capacity, thermal treatment requirements, factory conditions and downstream packaging system.
Our project support can include process design, equipment selection, production line integration, installation, commissioning and technical support.
Tubular Sterilizer FAQ
What is a tubular sterilizer?
A tubular sterilizer is a continuous thermal processing machine that uses tubular heat exchangers to heat, hold and cool liquid food or beverage products under controlled processing conditions.
What products can a tubular sterilizer process?
It can be configured for fruit juice, vegetable juice, tea beverages, plant-based drinks and other suitable low- to high-viscosity liquid products.
What is the typical sterilization temperature?
The example technical range provided is 85°C–137°C. The actual sterilization temperature depends on the product and validated process requirements.
What is the typical holding time?
The supplied example range is 4–30 seconds. The final holding time should be determined according to the specific product and thermal process.
Can the tubular sterilizer handle pulp-containing juice?
Yes. Tubular heat exchange systems can be configured for pulp-containing juice, puree and other products containing fibers or particles, subject to product characteristics and equipment design.
Can it be connected to a CIP system?
Yes. The tubular sterilizer can be integrated with a Clean-in-Place system to support automated cleaning and hygienic production.
How do I select a tubular sterilizer for my juice factory?
The main factors include product type, viscosity, pulp or fiber content, required capacity, sterilization temperature, holding time, heat source, material requirements and downstream filling conditions.
Get a Tubular Sterilizer Solution
Tell us your product type, required capacity, sterilization requirements and factory location. Our engineering team can help configure a suitable tubular sterilization system for your juice or beverage production line.
