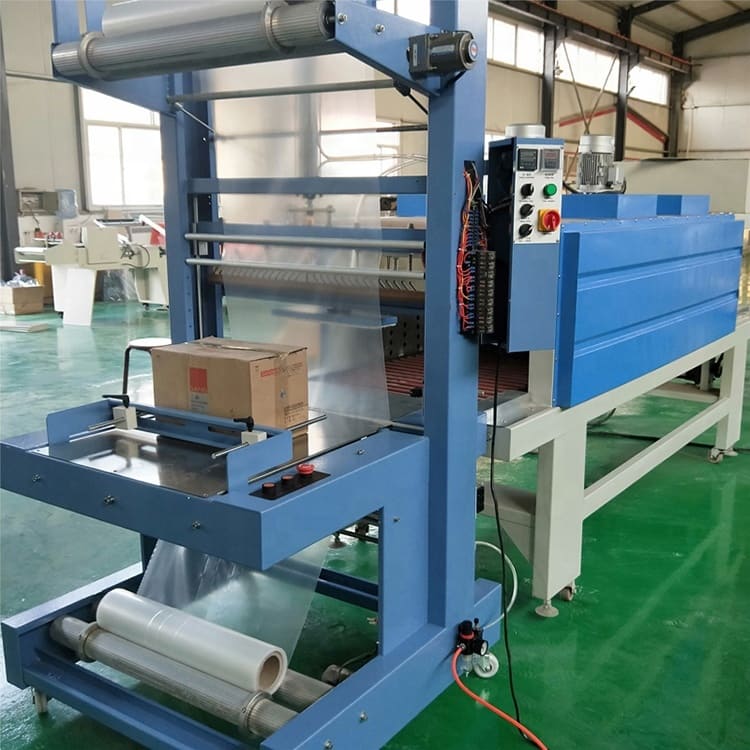

Automatic Shrink Wrapping Machine for PET Bottles and Beverages
The automatic shrink wrapping machine is designed for collective packaging of bottled water, beverages, cans, jars, glass bottles and plastic containers. It integrates product grouping, film wrapping, sealing, heat shrinking and cooling into one automatic packaging process.
The machine can operate independently or connect with a complete bottled water, juice, carbonated beverage or other beverage production line according to production capacity and packaging requirements.
Automatic Shrink Wrapper for Beverage Packaging
A practical secondary packaging solution for manufacturers requiring stable multipack packaging, easy operation and integration with automated beverage production lines.
Collective Packaging
Groups bottles or containers into compact packages suitable for handling, transportation and distribution.
Multiple Container Types
Suitable for PET bottles, plastic containers, cans, jars and other products compatible with shrink film packaging.
Automatic Production Line
Can be integrated with conveyors, filling machines, capping machines, labeling machines and downstream packaging equipment.
Key Features of the Shrink Wrapping Machine
The system is configured for stable product positioning, controlled sealing, efficient shrinking and consistent package appearance.
PLC Control
PLC control coordinates the main machine functions and supports stable automatic operation.
Photoelectric Detection
Photoelectric sensors detect products and support accurate positioning during packaging.
Variable Speed Conveyor
Frequency converter control allows the conveyor speed to be adjusted according to production requirements.
Automatic Sealing
The sealing and cutting system is designed for different package sizes and product arrangements.
Shrink Tunnel
Controlled heating provides consistent heat shrinkage around the finished package.
Rapid Cooling
The cooling system helps stabilize the package after heat shrinking.
How Does an Automatic Shrink Wrapper Work?
The packaging process combines product feeding, film wrapping, sealing, shrinking and cooling.
Product Feeding
Bottles or containers enter the machine through the conveyor.
Product Arrangement
Products are detected and arranged according to the required package configuration.
Film Sealing
Shrink film is wrapped around the product group and sealed.
Heating & Cooling
The package passes through the shrink tunnel and is cooled before leaving the machine.
Shrink Wrapping Machine Applications
The equipment can be used for different beverage and container packaging requirements.
Bottled Water
PET bottled water and mineral water multipack packaging.
Juice & Beverages
Juice, tea, soft drinks and other bottled beverages.
Cans
Collective packaging for beverage and food cans.
Glass Bottles
Suitable glass containers requiring secondary shrink packaging.
Control System and Shrink Tunnel Technology
Key machine systems are designed to simplify operation and maintain stable packaging performance.

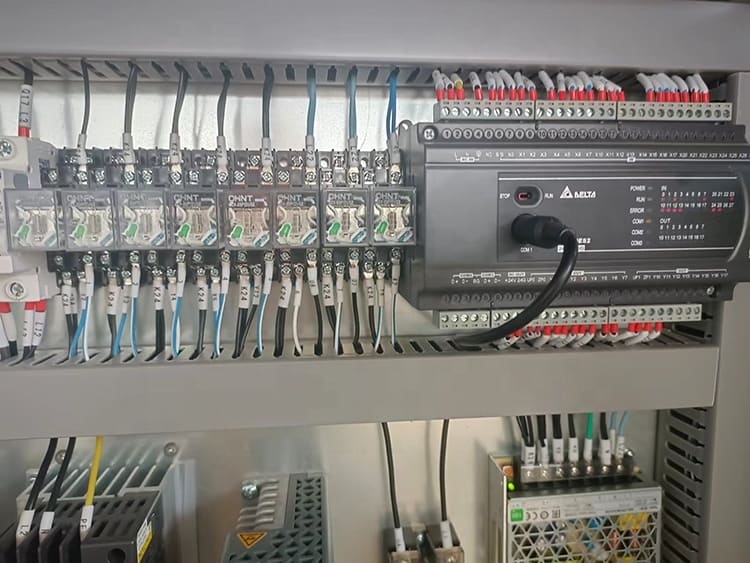

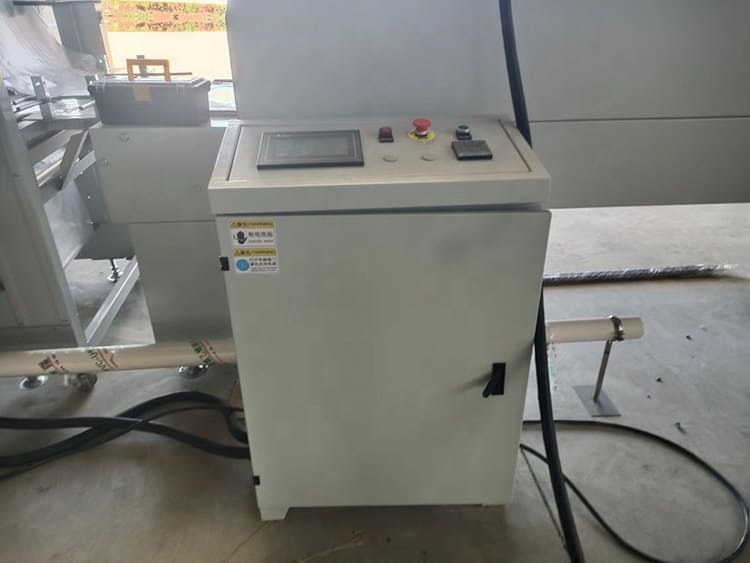

PLC Control Panel
Operators can set packaging parameters through the control system. The machine can store multiple packaging schemes for different products.
Automatic Package Calculation
The system can calculate package length according to the entered product dimensions and machine configuration.

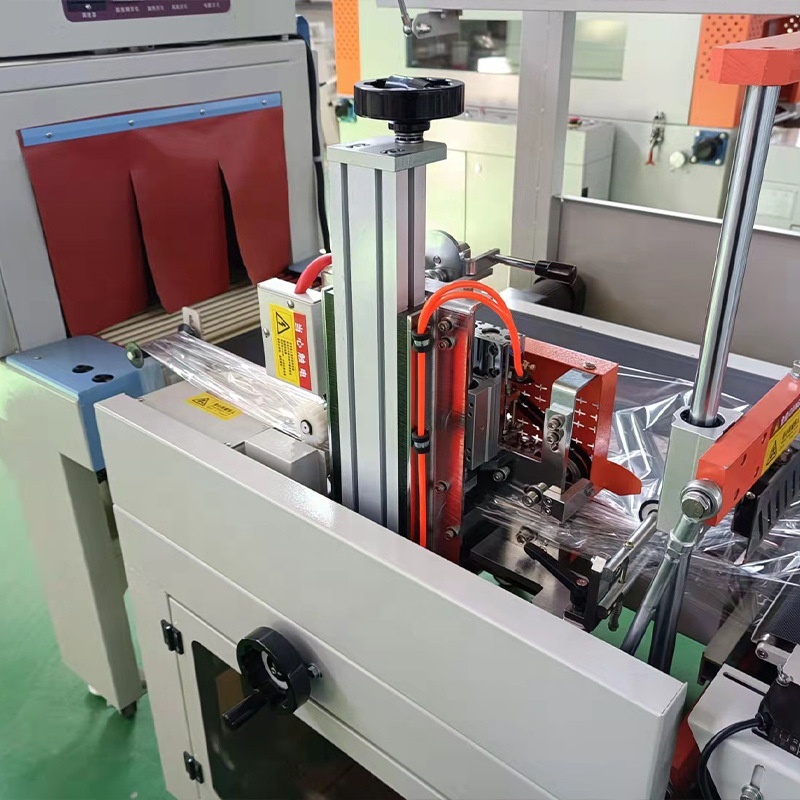

Temperature Control
The intelligent temperature controller helps maintain the required heating conditions inside the shrink tunnel.
ZYL-S6040 Technical Parameters
The following specifications are based on the supplied equipment data. Final configuration should be confirmed according to the product, package size and production requirements.
| Model | ZYL-S6040 |
|---|---|
| Shrink Film Material | PE, POF, PVC, PP |
| Machine Power | 1.8 kW |
| Electric Power | 22 kW |
| Maximum Packing Size | 400 × 270 × 350 mm |
| Minimum Packing Size | 250 × 50 × 60 mm |
| Shrink Tunnel Size | 1800 × 600 × 400 mm |
| Output | 0–10 packs/min |
| Air Supply | 4–6 bar |
| Power Supply | Three Phase 380V, 50Hz |
| Machine Weight | 280 kg |
| Machine Size | 2800 × 840 × 1375 mm |
Turnkey Beverage Packaging Engineering
Henan Zhongyilong Machinery Equipment Co., Ltd. provides beverage processing and packaging machinery solutions for bottled water, juice, carbonated beverages, tea and other liquid products.
For beverage factories, the automatic shrink wrapping machine can be configured as part of a complete secondary packaging system together with conveyors, filling machines, capping machines, labeling machines and other packaging equipment.
The appropriate machine configuration depends on bottle dimensions, package arrangement, production capacity, shrink film, factory conditions and the customer’s target market.
Project support can include process planning, equipment selection, manufacturing, installation, commissioning and technical support for international beverage production projects.
Automatic Shrink Wrapping Machine FAQ
What products can be packed by the shrink wrapping machine?
The machine can be used for PET bottles, plastic containers, cans, jars, glass bottles and other suitable products.
Can it be used for bottled water?
Yes. It is suitable for collective packaging of PET bottled water and can be integrated into an automatic bottled water production line.
What shrink film materials are supported?
The supplied ZYL-S6040 specification supports PE, POF, PVC and PP shrink film.
What is the output of the ZYL-S6040?
The supplied specification indicates an output of 0–10 packs per minute. Actual capacity depends on product size and package arrangement.
Can the shrink wrapper be connected to other machines?
Yes. The machine can be integrated with conveyors, filling machines, capping machines, labeling machines and other downstream packaging equipment.
How should I select a shrink wrapping machine?
Selection should consider bottle size, package arrangement, production capacity, film material, power supply and the required level of automation.
Request a Shrink Packaging Solution
Send us your bottle size, package arrangement, production capacity, film material and project location. Our engineering team can help develop a suitable shrink wrapping and beverage packaging solution.
