Automatic CIP Cleaning System for Beverage and Food Production Lines

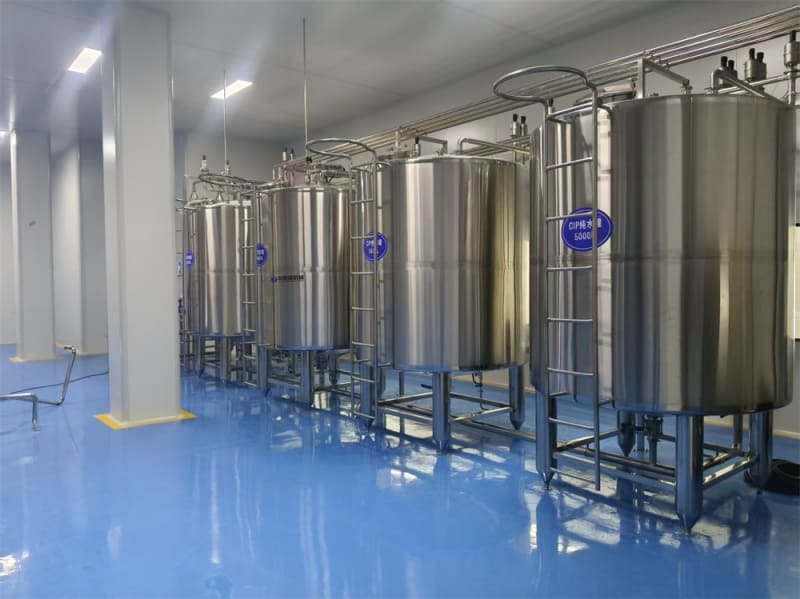

A CIP Cleaning System, also known as Cleaning in Place, is designed to automatically clean tanks, pipelines and closed processing circuits without dismantling production equipment.
Zhongyilong Machinery provides customized CIP cleaning solutions for beverage, juice, dairy, water treatment and liquid processing plants. The system helps manufacturers maintain hygienic production conditions while reducing manual cleaning operations.
Why Choose CIP Cleaning?
- Automatic cleaning without dismantling equipment
- Suitable for tanks, pipelines and complex closed circuits
- Reusable cleaning solutions help reduce chemical consumption
- Optional heated water and cleaning solution circulation
- PLC automatic control system available
- Customized CIP tank capacity and configuration
What Is a CIP Cleaning System?
CIP Cleaning Systems are automatic cleaning units designed for hygienic cleaning of production lines. Instead of manually dismantling machines, pipes and tanks, the cleaning process circulates water and cleaning solutions through the closed production system.
The system is widely used in high-capacity tanks, long pipelines and complex liquid processing equipment where manual cleaning can be inefficient and difficult to control.
A properly configured CIP system can improve cleaning consistency and help reduce direct operator contact with cleaning chemicals.
Working Principle of the CIP Cleaning System
The CIP cleaning process is designed as a controlled circulation sequence. Water and cleaning solutions are delivered through pipelines and tanks to remove production residues and support hygienic cleaning before the next production cycle.
Initial Water Rinse
Water is used to remove residual materials remaining in the production line. The initial rinse water is discharged from the system.
Cleaning Solution Circulation
Cleaning solutions are circulated through pipelines and tanks to clean the production system and reduce microbiological contamination risks.
Solution Recovery
After the cleaning cycle, the cleaning solution can return to the CIP tank for reuse according to the process configuration.
Final Rinsing
Clean water is circulated through the system to remove remaining cleaning solution from pipelines and tanks.
Efficient Cleaning for Pipelines and Processing Tanks
Flow velocity is an important factor in the cleaning performance of pipelines. CIP pumps and circulation systems should be selected according to pipeline design and process requirements.
Tank cleaning can be performed using spray devices or CIP balls installed inside production tanks. These components distribute cleaning liquids across internal tank surfaces.
Depending on production requirements, cleaning water and chemical solutions can also be heated through electric or steam heating systems.
CIP Cleaning System Technical Parameters
| Operation | Automatic |
|---|---|
| Each Tank Size | 100L / 200L / 300L / 500L / 600L / 1000L / 2000L / 3000L |
| CIP Tank Configuration | Acid Tank + Alkaline Tank + Hot Water Tank (3 in 1) |
| CIP Tank Material | SS316L, Hot Water Tank SS304 |
| Heating | Direct Heating by Electric Heater |
| Optional Heating | Steam Heating Jacket for Each Tank / Electric Heating |
| CIP Pump | 2 Centrifugal Pumps, One for Delivery and One for Return |
| Control System | PLC Automatic Control |
| Valve and Pipeline | Pneumatic Butterfly Valve + Tri-Clamp Pipeline |
| Customization | System configuration can be customized according to customer requirements |
Main Components of the CIP Cleaning System

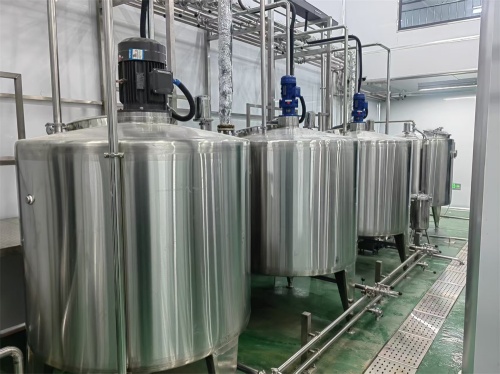

Centrifugal Pump

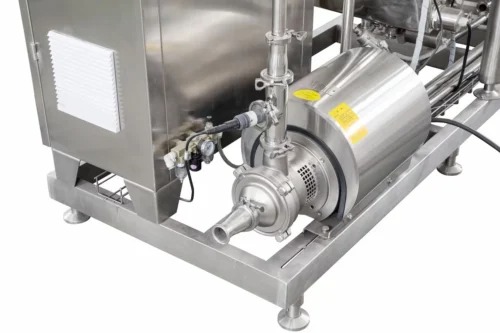

SUS304 centrifugal pumps are used for cleaning liquid circulation and delivery. Pipeline filters can also be integrated according to system requirements.
Control Cabinet

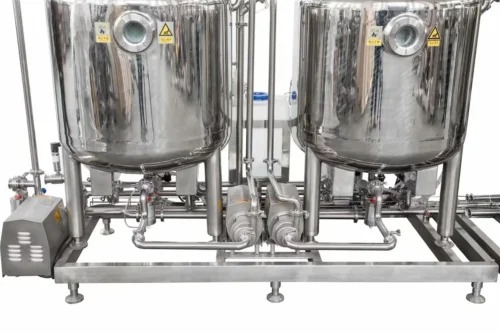

SUS304 control cabinets can be equipped with independent control systems, buttons or customized PLC touch screen control interfaces.
Electric Heating System
SUS304 or SS316L electric heating tubes can be configured. Electric heating and steam heating options are available according to cleaning process requirements.
Where Can CIP Cleaning Systems Be Used?
Beverage Industry
Suitable for beverage mixing systems, filling lines and processing pipelines.
Juice Processing
Used for cleaning juice extraction, mixing, sterilization and filling systems.
Water Production
Suitable for water treatment pipelines, storage tanks and liquid processing equipment.
Food Processing
Can be integrated into hygienic liquid food processing systems and closed production circuits.
