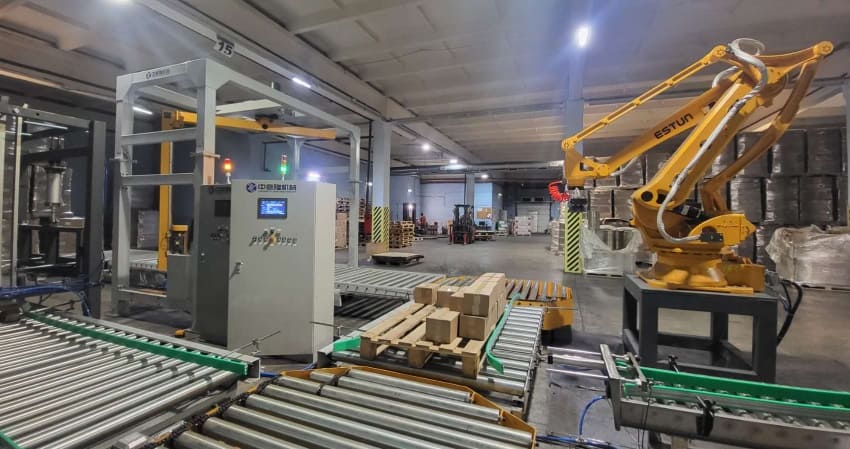

Customized Robotic Palletizing Systems for Cartons, Bags and Plastic Products
Automated palletizing solutions can be engineered around product dimensions, package weight, pallet pattern, production speed and factory layout. The system is designed to improve handling efficiency while reducing repetitive manual palletizing work.
For beverage, food, packaging and industrial production facilities, robotic palletizing provides a flexible way to transfer cartons, bags, plastic bags and other packaged products from production lines to pallets.
Robotic Palletizing Solution for Automated Production Lines
A robotic palletizing system can be configured according to the product, package type, required throughput and available factory space.
Customized Palletizing
Robot payload, gripper type, pallet pattern and working range can be selected according to the actual product and production requirements.
Automatic Material Handling
The robot can continuously handle products from the production line and place them according to programmed palletizing patterns.
Designed for Industrial Use
System selection considers operating life, energy consumption, maintenance requirements and future production conditions.
Products Suitable for Robotic Palletizing
Different end-of-arm tools and palletizing programs can be selected for different package formats.
Cartons
Suitable for cartons from beverage, food and general packaging lines.
Bags
Robotic handling solutions can be configured for flexible bag products.
Plastic Bags
Customized gripping systems can handle suitable plastic bag products.
How Does a Robotic Palletizing System Work?
The robot coordinates product conveying, gripping, positioning and pallet stacking through a programmed control system.
Product Transfer
Products are transported from the production or packaging line to the robot working area.
Product Positioning
Sensors and the control system identify product position and palletizing sequence.
Product Handling
The customized gripper picks up cartons, bags or other suitable packaged products.
Pallet Formation
Products are placed according to the programmed pallet pattern and stacking requirements.
Robotic Palletizing System Video
See how an industrial palletizing robot can handle packaged products and build stable pallet loads automatically.

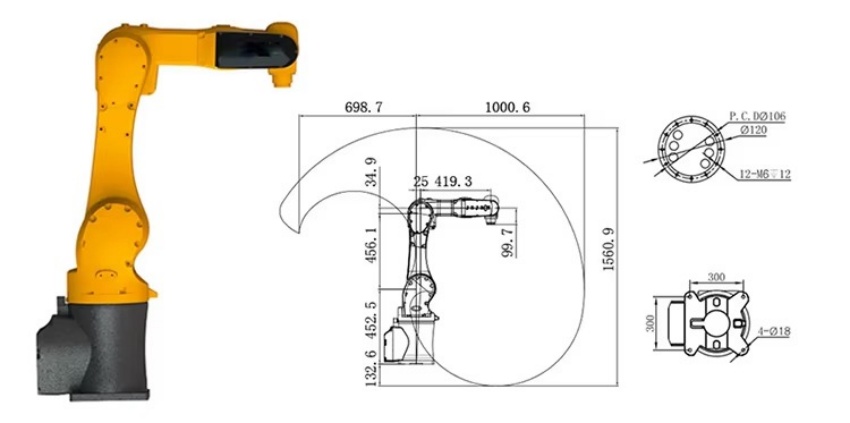

Robotic Palletizing Robot Technical Parameters
The following specifications are based on the supplied equipment information. Final robot configuration depends on the product, payload, pallet pattern and working range.
| Number of Axes | 4 axis / 6 axis |
|---|---|
| Repeatability | ±0.08 mm |
| Maximum Wingspan | 1000–3100 mm |
| Ambient Temperature | 0–45°C |
| Robot Weight | 50–680 kg |
| Payload | Customized according to application requirements |
| Gripper | Customized according to product and packaging format |
Key Features of the Palletizing Robot
High positioning accuracy, fast movement and a wide working range make robotic palletizing suitable for automated material handling.
High Positioning Accuracy
The robot is designed for repeatable product positioning and consistent pallet stacking.
Wide Working Range
Different robot configurations can cover a wide working area for large-load and large-range material handling applications.
Easy Operation
Built-in palletizing operation models simplify teaching and programming for routine stacking applications.
Robotic Palletizing System Components
The complete system can include the robot arm, customized gripper, control cabinet, teaching pendant, safety fence and supporting connections.

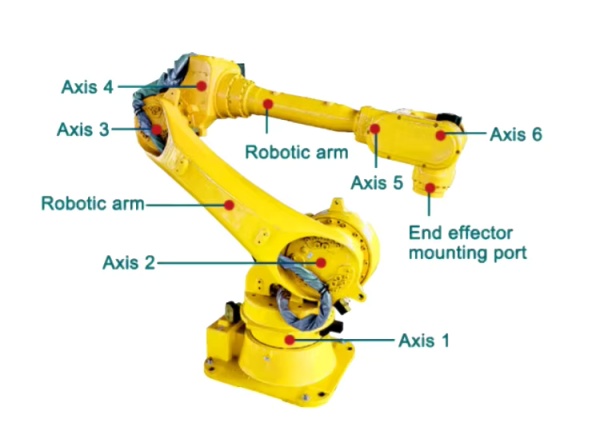

Robot Arm
The robot arm uses aluminum castings processed by CNC machining. The surface treatment is designed for an industrial appearance and long-term operation.
Machine Gripper
The end-of-arm fixture can be equipped with suction cups or other gripping devices according to product weight, shape and packaging.
Customized Fixture
The reclaiming chuck can be adjusted according to different products, providing flexible installation and a wide range of applications.
Reserved Wiring Connections
Reserved wiring holes, pneumatic interfaces and data cable connections help maintain an organized robot arm installation.
Robot Control Cabinet
The intelligent motion control system uses digital servo technology to control the robot joints and coordinate automated movements.
Teaching Pendant
The ergonomic teaching pendant provides a user-friendly interface, safety switch and USB connection for teaching program import and export.

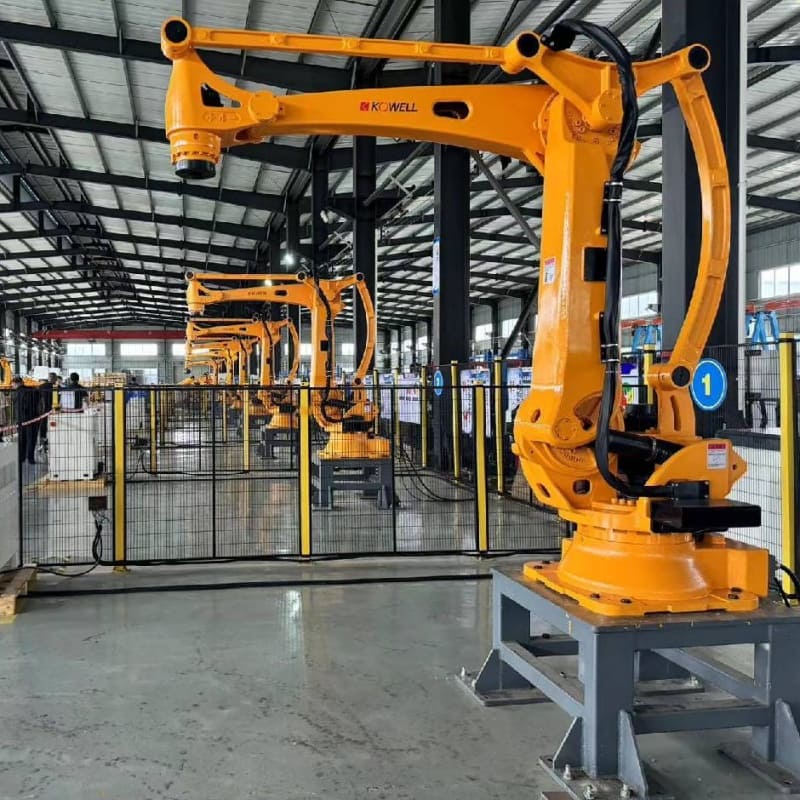

Robot Safety Fence
The protective fence separates the robot operating area from personnel while maintaining dedicated loading and unloading access.
Customized Robotic Palletizing Engineering
Henan Zhongyilong Machinery Equipment Co., Ltd. develops automated production and packaging equipment solutions for industrial customers.
For robotic palletizing projects, the engineering approach considers product type, package dimensions, product weight, required payload, pallet size, stacking pattern, production speed and available factory space before selecting the robot configuration and end-of-arm tooling.
The system can be developed for beverage, food, packaging and other industrial applications where cartons, bags, plastic bags and similar products need automated handling and palletizing.
For international projects, the final equipment configuration can be adapted to local factory conditions, electrical requirements, production capacity and downstream packaging systems.
Robotic Palletizing System FAQ
What products can a palletizing robot handle?
The system can be configured for cartons, bags, plastic bags and other packaged products according to their dimensions, weight and handling requirements.
Can the palletizing robot be customized?
Yes. Robot payload, gripper, working range, pallet pattern and system configuration can be customized according to the application.
What is the repeatability of the robot?
The supplied technical data specifies repeatability of approximately ±0.08 mm.
How do I select the correct robot payload?
Payload selection depends on product weight, gripper weight, required working range and palletizing pattern. The complete application should be evaluated before final selection.
Can the robot be integrated with an existing production line?
Yes. A robotic palletizing system can be designed around existing conveyors and packaging equipment when the product flow and interface requirements are compatible.
Can you provide a complete palletizing solution?
Yes. A complete solution can include robot selection, gripper, control system, conveyor interface, safety fence, palletizing program and related engineering support.
Request a Robotic Palletizing Solution
Send us your product type, package dimensions, product weight, pallet size, required capacity and project location. Our engineering team can recommend a suitable robotic palletizing configuration.
