Vacuum Evaporator & Juice Concentrator
The vacuum pressure reduction evaporator is designed for concentrating liquid products in food, beverage, juice, healthcare, pharmaceutical and chemical processing applications. Vacuum evaporation provides controlled concentration under reduced pressure while helping protect product quality.
Request a Concentration Solution on WhatsAppIndustrial Vacuum Concentrator for Liquid Products
The vacuum evaporator, also known as a vacuum concentrator or jam concentrator, is used to remove water or other volatile components from liquid products in order to increase their concentration.
The system can be applied to juice, food products, health-care liquids, oral liquids and selected chemical products. It can also be configured for alcohol recovery and other suitable solvent recovery processes.
Depending on the process requirements, the equipment can operate intermittently or continuously.

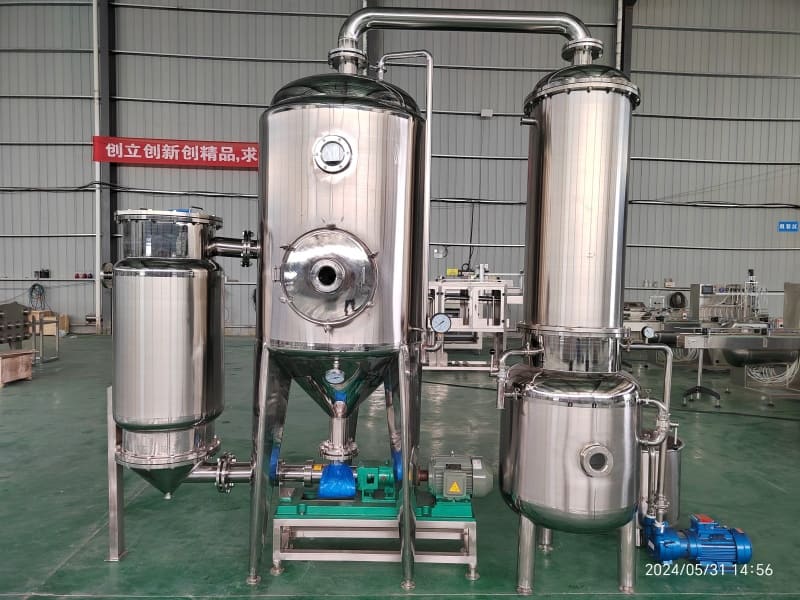

Vacuum Evaporator Construction
The concentrator uses stainless steel process components and combines heating, evaporation, vapor separation, condensation, cooling and liquid collection in one integrated system.
Concentration Tank
The concentration tank uses a jacketed structure for indirect heating. Steam can be introduced into the jacket according to the required processing temperature.
Condenser
The condenser processes generated vapor and supports separation and recovery of condensable components during vacuum evaporation.
Gas-Liquid Separator
The gas-liquid separation section helps separate entrained liquid and vapor during the concentration process.
Cooler
The cooling section can reduce the temperature of recovered condensate or process liquid according to the system configuration.
Liquid Receiving Barrel
The receiving section collects the final liquid or recovered condensate after the corresponding process stage.
SUS304 / SUS316L
Stainless steel 304 or 316L can be selected according to product characteristics, hygiene requirements and project conditions.
How Does a Vacuum Evaporator Work?
Vacuum evaporation lowers the boiling point of the liquid, allowing concentration to take place under reduced pressure.
Product Feeding
The liquid product enters the concentration vessel.
Steam Heating
Steam heats the product indirectly through the jacket.
Vacuum Evaporation
Reduced pressure lowers the boiling point and promotes evaporation.
Vapor Separation
Vapor and liquid are separated through the system components.
Condensation & Recovery
Vapor is condensed and recovered according to the process design.
Vacuum Evaporator Applications
The equipment can be configured for a variety of liquid concentration and recovery processes.
Fruit Juice
Concentration of fruit juice and other liquid fruit products.
Food Products
Concentration of suitable food liquids and high-solids products.
Jam & Puree
Vacuum concentration for jam, puree and similar viscous products.
Healthcare Liquids
Suitable process configurations can be developed for selected healthcare and oral liquid applications.
Pharmaceutical
Vacuum concentration can be used for suitable pharmaceutical liquids.
Chemical Processing
Applicable to selected industrial liquid concentration processes.
Alcohol Recovery
The system can be configured for suitable alcohol recovery processes.
Liquid Reduction
Efficient evaporation reduces liquid volume and increases concentration.
Vacuum Evaporator Technical Parameters
The following values are based on the supplied equipment data. Actual evaporation performance depends on product properties, operating conditions and system configuration.
| Parameter | -100 | -200 | -300 | -500 | -700 | -1000 | -2000 |
|---|---|---|---|---|---|---|---|
| Evaporation Capacity (kg/h) | 60 | 130 | 160 | 230 | 330 | 450 | 900 |
| Steam Pressure (MPa) | < 0.25 | ||||||
| Heat Transfer Area (m²) | 1.2 | 1.3 | 1.5 | 1.75 | 2.2 | 2.5 | 5.5 |
| Cooling Area (m²) | 1.0 | 1.0 | 1.0 | 1.1 | 1.1 | 1.2 | 3.0 |
| Condenser Area (m²) | 3.3 | 4.0 | 5.0 | 7.0 | 7.0 | 7.5 | 14.0 |
| Liquid Trough Volume (L) | 45 | 60 | 80 | 100 | 125 | 140 | 185 |
| Energy Consumption (kg/h) | 460 | 700 | 850 | 1150 | 1500 | 1850 | 4030 |
Flexible Capacity and Stainless Steel Construction
100–5,000 L Configuration Range
The supplied product information indicates a capacity range of 100 L to 5,000 L for flexible process configuration. Final working volume should be determined according to the product and process.
SUS304 / SUS316L Stainless Steel
Stainless steel construction provides corrosion resistance, durability and suitability for demanding industrial processing environments.
Vacuum Concentration
Reduced-pressure evaporation can lower the boiling temperature and provide a controlled method for concentrating heat-sensitive liquid products.
How to Select a Vacuum Concentrator
The correct vacuum evaporator should be selected according to the complete process rather than capacity alone.
- Product type: juice, jam, puree, food liquid, healthcare liquid or chemical liquid.
- Initial and final concentration: required solids content and target concentration.
- Processing capacity: hourly evaporation requirement and batch or continuous production.
- Heat sensitivity: product temperature limitations and required vacuum conditions.
- Material requirements: SUS304 or SUS316L according to product characteristics and hygiene standards.
- Recovery requirements: condensate, alcohol or other volatile component recovery.
- Factory utilities: steam, cooling water, vacuum system and electrical requirements.
Turnkey Liquid Processing Equipment Supplier
Henan Zhongyilong Machinery Equipment Co., Ltd. provides processing and packaging machinery for beverage, food and liquid product applications.
For juice and liquid concentration projects, the vacuum evaporator can be integrated with raw material processing, filtration, storage, sterilization and filling equipment to create a complete production system.
Project support can include process equipment selection, system design, equipment manufacturing, production line integration, installation, commissioning and technical support.
Vacuum Evaporator FAQ
What is a vacuum evaporator?
A vacuum evaporator is a liquid concentration machine that operates under reduced pressure to promote evaporation at a lower boiling temperature than conventional atmospheric evaporation.
What products can a vacuum concentrator process?
It can be configured for suitable fruit juices, food liquids, jam, puree, healthcare liquids, pharmaceutical liquids and selected chemical processing applications.
Can the vacuum evaporator be used for juice concentration?
Yes. Vacuum evaporation is commonly used for concentrating fruit juice and other liquid food products when controlled thermal processing conditions are required.
Can it be used for alcohol recovery?
The supplied equipment information indicates that the system can also be configured for alcohol recovery and suitable solvent recovery applications.
Can the system operate continuously?
Yes. The equipment can be configured for intermittent batch operation or continuous production. Continuous systems require appropriate flow measurement and process control.
What stainless steel materials are available?
SUS304 and SUS316L stainless steel options can be selected according to product characteristics, corrosion requirements and hygiene standards.
How is the evaporation capacity selected?
Capacity should be calculated according to feed volume, initial concentration, target concentration, product properties, evaporation rate, operating temperature and required production time.
Get a Vacuum Evaporation Solution
Tell us your product type, feed capacity, initial and target concentration, production method and project location. Our engineering team can help configure a suitable vacuum evaporator or complete juice concentration system.
